# 1 Draw 对象
ol在客户端（浏览器）可以通过Draw交互对象在map中绘制几何图形。
初始化Draw对象时，在构造参数options中指定type参数和用于存储所绘制图形的数据源source即可，但type类型必须是'Point', 'LineString', 'LinearRing', 'Polygon', 'MultiPoint', 'MultiLineString', 'MultiPolygon', 'GeometryCollection', 'Circle'中的类型。
当然在Draw中也提供了一些方法用于绘制自定义图形。
new Draw(options)，options常用的构造参数
| name | type | Description |
|---|---|---|
| type | module:ol/geom/GeometryType (opens new window) | 指定要绘制的几何类型 |
| clickTolerance | number | 绘制时鼠标点击的容差 |
| features | ol/Collection~Collection (opens new window)<ol/Feature> | 用于存储绘制图形的要素集合 |
| source | ol/source/Vector~VectorSource (opens new window) | 用于存储绘制图形的数据源 |
| dragVertexDelay | number (defaults to 500) | 当前顶点被拖动到其确切位置之前的延迟(毫秒)。 |
| snapTolerance | number(defaults to 12) | 可拖放对象离目标对象的距离低于此像素值时开始靠拢 |
| stopClick | boolean(defaults to false) | 停止在绘图期间触发的单击、singleclick和doubleclick事件。 |
| finishCondition | ol/events/condition~Condition (opens new window) | 绘制结束的条件函数 |
| style | ol/style/Style~StyleLike (opens new window) | 绘制图形使用的渲染样式 |
| geometryFunction | ol/interaction/Draw~GeometryFunction (opens new window) | 当绘制图形的坐标发生变化时，调用的函数。它接受一个坐标数组、一个可选的现有几何图形和一个投影作为参数，并返回一个几何图形。 |
| freehand | boolean(defaults to false) | 自由模式，自定义绘制图形 |
| maxPoints | number | 绘制多边形或线的最多点数个数 |
| minPoints | number | 绘制多边形或线的最少点数个数，线默认为2，多边形默认为3 |
与Draw绘制对象对应的有一个ol/interaction/Draw~DrawEvent事件类来处理绘制交互过程中的事件，如：
drawstart：开始绘制要素时触发drawend：绘制结束后触发

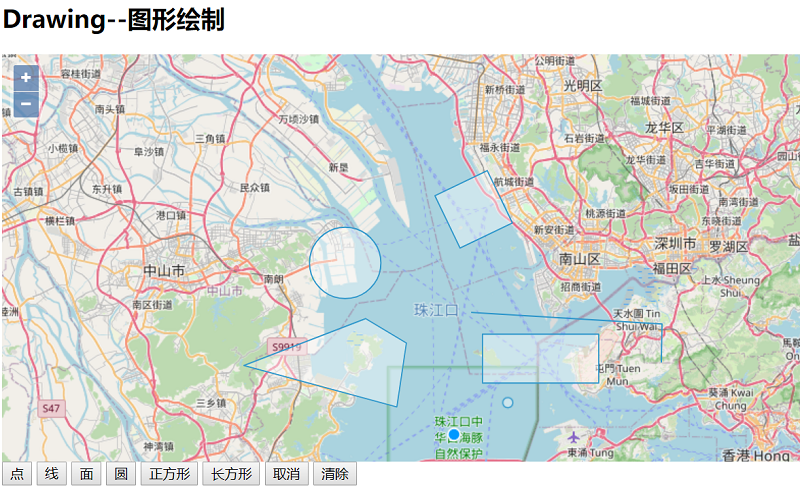

示例：
<!doctype html>
<html>
<head>
<link rel="stylesheet" href="css/ol.css" type="text/css">
<style>
.map {
height: 400px;
width: 100%;
}
</style>
<script src="lib/ol.js"></script>
<title>图形绘制</title>
<meta charset="UTF-8">
</head>
<body>
<h2>Drawing--图形绘制</h2>
<div id="map" class="map"></div>
<div>
<button onclick="addDrawInteraction('Point')">点</button>
<button onclick="addDrawInteraction('LineString')">线</button>
<button onclick="addDrawInteraction('Polygon')">面</button>
<button onclick="addDrawInteraction('Circle')">圆</button>
<button onclick="addDrawInteraction('Square')">正方形</button>
<button onclick="addDrawInteraction('Box')">长方形</button>
<button onclick="addDrawInteraction('None')">取消</button>
<button onclick="addDrawInteraction('Clear')">清除</button>
</div>
<script type="text/javascript">
var shenzhen = [113.958334,22.535640];
var map = new ol.Map({
target: 'map',
layers: [
//作为底图
new ol.layer.Tile({
source: new ol.source.OSM()
})
],
view: new ol.View({
center: ol.proj.fromLonLat(shenzhen),
zoom: 10
})
});
//创建矢量数据源，用于存储在线绘制几何对象
var opterationSource = new ol.source.Vector();
var vecLayer = new ol.layer.Vector({
source: opterationSource
});
map.addLayer(vecLayer);
//创建Draw实例
var draw = null;
function addDrawInteraction(drawType) {
//移除原来的draw
map.removeInteraction(draw);
draw = null;
switch (drawType){
case 'Point':
case 'LineString':
case 'Polygon':
case 'Circle':
draw = new ol.interaction.Draw({
source:opterationSource,
type:drawType,
// freehand: true //自由模式，自定义绘制 图形
});
map.addInteraction(draw);
break;
case 'Square':
draw = new ol.interaction.Draw({
source:opterationSource,
type:'Circle',
geometryFunction:ol.interaction.Draw.createRegularPolygon(4)
});
map.addInteraction(draw);
break;
case 'Box':
draw = new ol.interaction.Draw({
source:opterationSource,
type:'LineString',
maxPoints:2,//绘制前多边形或线的最大点数
//当几何坐标更新时调用
geometryFunction:function (coordinates,geometry) {
if(!geometry){
geometry = new ol.geom.Polygon(null);//多边形
}
var start = coordinates[0];
var end = coordinates[1];
geometry.setCoordinates([
[
start,
[start[0],end[1]],
end,
[end[0],start[1]],
start
]
]);
return geometry;
}
});
map.addInteraction(draw);
break;
case "Clear":
//清除数据源中存储的要素
opterationSource.clear() ;
break;
}
if(draw){
bindDrawEvent();
}
}
function bindDrawEvent(){
draw.on("drawstart",function(e){
console.log("drawstart");
});
draw.on("drawend",function(e){
//从事件源中获取所绘制的几何图形
var geometry = e.feature.getGeometry();
console.log("drawend");
});
}
</script>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
# 2 Modify对象
如果需要对客户端绘制的图层或要素服务提供的图层进行修改，我们可以使用ol中的modify交互对象完成这类需求。跟Draw对象类似，初始化Modify实例时，需要在构造参数中使用source或features指定数据源或要素集合。将Modify实例添加到map上后就可以修改指定的要素了。通常跟snap交互控件一起使用，方便捕捉几何图形的顶点进行修改。

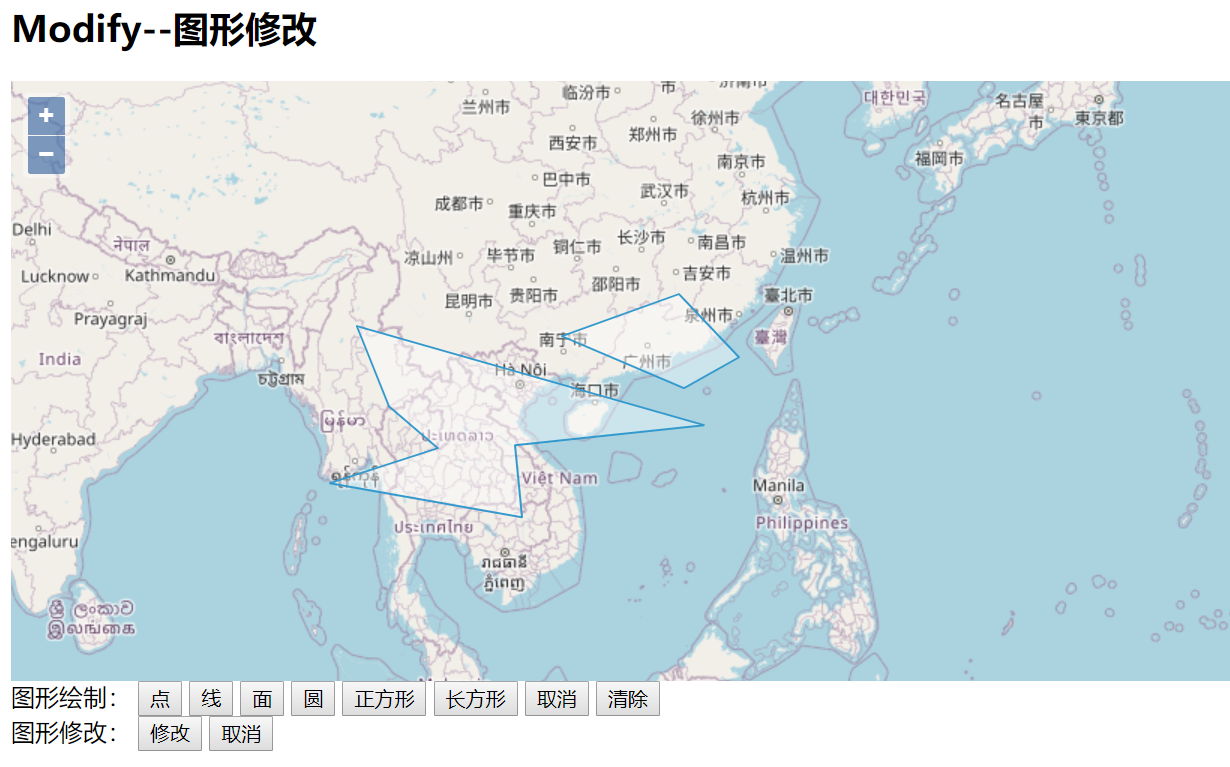

示例：
<!doctype html>
<html>
<head>
<link rel="stylesheet" href="css/ol.css" type="text/css">
<style>
.map {
height: 85vh;
width: 100%;
}
</style>
<script src="lib/ol.js"></script>
<script src="lib/jquery-3.1.1.js"></script>
<title>图形修改</title>
<meta charset="UTF-8">
</head>
<body>
<h2>Modify--图形修改</h2>
<div id="map" class="map"></div>
<div>图形绘制：
<button onclick="addDrawInteraction('Point')">点</button>
<button onclick="addDrawInteraction('LineString')">线</button>
<button onclick="addDrawInteraction('Polygon')">面</button>
<button onclick="addDrawInteraction('Circle')">圆</button>
<button onclick="addDrawInteraction('Square')">正方形</button>
<button onclick="addDrawInteraction('Box')">长方形</button>
<button onclick="addDrawInteraction('None')">取消</button>
<button onclick="addDrawInteraction('Clear')">清除</button>
</div>
<div>图形修改：
<button onclick="addModify()">修改</button>
<button onclick="cancelModify()">取消</button>
</div>
<script type="text/javascript">
var map = new ol.Map({
target: 'map',
layers: [
new ol.layer.Tile({
source: new ol.source.OSM()
})
],
view: new ol.View({
center: ol.proj.fromLonLat([137.41, 23.82]),
zoom: 4
})
});
//创建矢量数据源，用于存储在线绘制几何对象
var opterationSource = new ol.source.Vector();
var vecLayer = new ol.layer.Vector({
source: opterationSource
});
map.addLayer(vecLayer);
//创建Draw实例
var draw = null;
function addDrawInteraction(drawType) {
//移除原来的draw
map.removeInteraction(draw);
draw = null;
switch (drawType){
case 'Point':
case 'LineString':
case 'Polygon':
case 'Circle':
draw = new ol.interaction.Draw({
source:opterationSource,
type:drawType,
});
map.addInteraction(draw);
break;
case 'Square':
draw = new ol.interaction.Draw({
source:opterationSource,
type:'Circle',
geometryFunction:ol.interaction.Draw.createRegularPolygon(4)
});
map.addInteraction(draw);
break;
case 'Box':
draw = new ol.interaction.Draw({
source:opterationSource,
type:'LineString',
maxPoints:2,
geometryFunction:function (coordinates,geometry) {
if(!geometry){
geometry = new ol.geom.Polygon(null);//多边形
}
var start = coordinates[0];
var end = coordinates[1];
geometry.setCoordinates([
[
start,
[start[0],end[1]],
end,
[end[0],start[1]],
start
]
]);
return geometry;
}
});
map.addInteraction(draw);
break;
case "Clear":
opterationSource.clear() ;
break;
}
};
//创建modify实例
var modify = new ol.interaction.Modify({
source:opterationSource
});
function addModify() {
map.addInteraction(modify);
};
function cancelModify() {
map.removeInteraction(modify);
};
</script>
</body>
</html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
